Gaussian Processes

Gaussian Processes #

This notebook presents Gaussian Processes, a fitting method that has countless applications in Statistics and ML.

Notably, it has 2 properties we may exploit:

it can be used to fit a black-box function
it naturally provides uncertainties on the model

Applications:

Gaussian Processes is very powerful on its own, being a generic fitting method for any regression task.

However ..

It shines when incorporated in Bayesian Optimization, a technique used for e.g. hyperparameter optimization .

Setup#

#!pip install scikit-learn astropy scikit-image --quiet

import requests

url = "https://raw.githubusercontent.com/AstroStat-Academy/assets-public/main/colab/clone_and_cd_colab.py"
colab = requests.get(url).text
exec(colab)

Running locally, skipping Colab setup.

import requests

url = "https://raw.githubusercontent.com/AstroStat-Academy/assets-public/main/styles/plot_style.py"
style = requests.get(url).text
exec(style)

Imported matplotlib.
Imported seaborn.
Plotting style set.

import numpy as np
import pandas as pd

Preamble: \(n\) function points are equal to 1 point in \(\mathbb{R}^{n}\)#

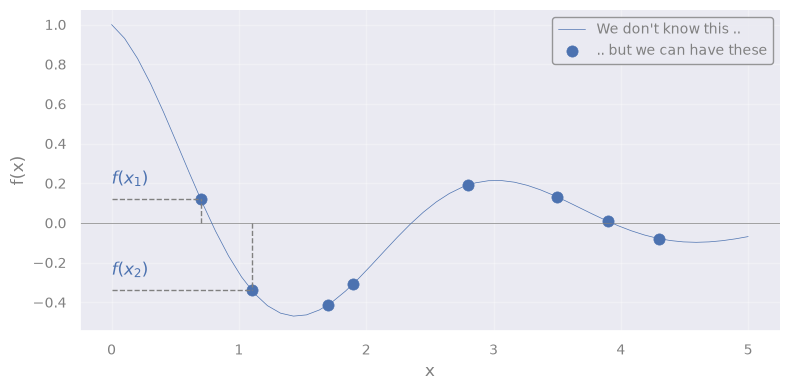

Let’s assume we have an unknown function \(-\) the one we want to model \(-\) \(f(x)\), where \(x\) is 1D.

IMPORTANT: We do not know the functional form of \(f\) !

We only know that, for every point \(x_i\), we can generate a corresponding \(y_i \equiv f(x_i)\)

# Unknown function of extra-terrestrial origin:
def f(x):
    return np.exp(-0.5 * x) * np.cos(2 * x)
'''NOTE: You have to pretend we do _not_ know the mathematical form.
         Just use this `f(x)` as a black-box function.'''

xx = np.linspace(0, 5, 50)
X = np.array([0.7, 1.1, 1.7, 1.9, 2.8, 3.5, 3.9, 4.3])

plt.figure()
plt.axhline(y=0, lw=0.5, c='grey')
plt.plot(xx, f(xx), c='C0', lw=0.5, label="We don't know this ..")
plt.scatter(X, f(X), c='C0', s=65, lw=0.5, label=".. but we can have these")
plt.xlabel('x')
plt.ylabel('f(x)')

for i in range(2):
    plt.plot([X[i], X[i]], [0, f(X[i])], ls='--', c='grey', lw=1)  # Vertical segment to curve
    plt.plot([0, X[i]], [f(X[i]), f(X[i])], ls='--', c='grey', lw=1)  # Horizontal segment to y-axis
    plt.text(0, f(X[i])+0.1, str("$f(x_%s)$" % (i+1)), c='C0', fontsize=12, verticalalignment='center')

plt.legend()
plt.show()

../_images/072b9bfa1c371628b637386ccb868fae274595663c7043b57d181cf4695aa3d1.png

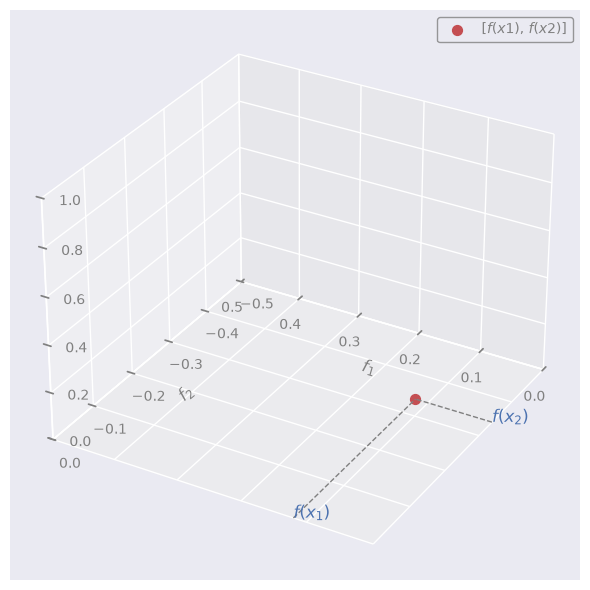

We can see the array composed of the \(n\) values:

\[[f(x_1), f(x_2),\dots, f(x_n)] = [0.16, -0.38, ...]\]

as 1 point in \(\mathbb{R}^{n}\) (but we can show only the first 2 dimensions)

# Define grid
fx1x1 = np.linspace(-0.0, 0.5, 50)
fx2x2 = np.linspace(-0.5, 0.0, 50)

fX1, fX2 = f(X[0]), f(X[1])

from mpl_toolkits.mplot3d import Axes3D

def plot_point_in_Rn(fX1, fX2, fx1x1, fx2x2, rv=None):

    fig = plt.figure(figsize=(8, 6))
    ax = fig.add_subplot(111, projection='3d')

    # Plot the point of interest
    ax.scatter(fX1, fX2, 0, color='C3', s=50, label="[$f(x1)$, $f(x2)$]")

    # Segmented lines to x- and y-axis
    ax.plot([fX1, fX1], [np.min(fx1x1), fX2],   [0, 0], ls='--', c='grey', lw=1)  # Horizontal line to x-axis
    ax.plot([np.min(fx1x1), fX1],   [fX2, fX2], [0, 0], ls='--', c='grey', lw=1)  # Horizontal line to y-axis

    ax.text(fX1, np.min(fx1x1), 0, r"$f(x_1)$", fontsize=12, color='C0')
    ax.text(np.min(fx1x1), fX2, 0, r"$f(x_2)$", fontsize=12, color='C0')

    ax.set_xlabel('$f_1$')
    ax.set_ylabel('$f_2$')
    ax.set_xlim([np.max(fx1x1), np.min(fx1x1)]) #  Flip for better visualization
    ax.set_ylim([np.max(fx2x2), np.min(fx2x2)]) #  Flip for better visualization
    ax.set_zlim([0, 1]) # Set view above plane

    if rv:
        # Extract the 2D marginal mean and covariance
        rv_2D = multivariate_normal(mean=mu[:2], cov=sigma[:2, :2])

        # Compute probability density function on a grid
        fX1X1, fX2X2 = np.meshgrid(fx1x1, fx2x2)
        Z = rv_2D.pdf(np.dstack((fX1X1, fX2X2)))

        # Plot the Multivariate Normal Distribution
        ax.plot_wireframe(fX1X1, fX2X2, Z, color='C2', linewidth=0.5, label='Multinormal')

        ax.set_zlim([0, np.max(Z)])

    plt.legend()
    plt.show()

plot_point_in_Rn(fX1, fX2, fx1x1, fx2x2, rv=None)

../_images/9b84e1fe3f88165cf57d7f44afadff60d0cfde46b17662e2cae7794f57051085.png

NOTE:

\(f_1\): space of all the possible values that the unknown function may have at point \(x_1\)
\(f_2\): space of all the possible values that the unknown function may have at point \(x_2\)
\(f(x_1)\): actual value that the unknown function has at point \(x_1\)
\(f(x_2)\): actual value that the unknown function has at point \(x_2\)

Let’s now assume that f = \([f(x_1), f(x_2),\dots, f(x_n)]\) is a point that follows a multivariate Gaussian (Normal) distribution in \(\mathbb{R}^{n}\).

In other words, we assume that f is sampled from a multivariate Normal

Let’s throw an arbitrary multivariate Normal in the image:

from scipy.stats import multivariate_normal
rng = np.random.default_rng(seed=42)

n_dim = len(X)
# the number of dimensions equals the number of datapoints

# Define Multivariate Normal Distribution
mu = f(X) + rng.uniform(0.05, 0.1, size=n_dim)  # Random means vector (conveniently near the true values)
cov = 0.05*rng.random((n_dim, n_dim))  # Random covariance
sigma = np.dot(cov, cov.T)  # Ensure it's positive semi-definite
#
rv = multivariate_normal(mean=mu, cov=sigma)

plot_point_in_Rn(fX1, fX2, fx1x1, fx2x2, rv=rv)

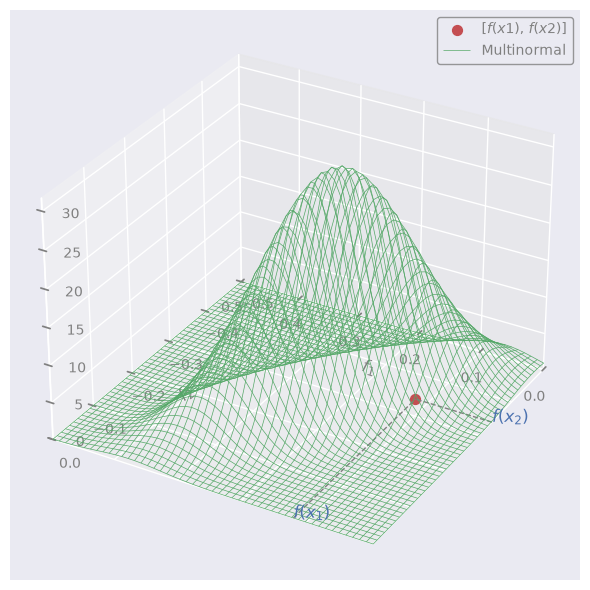

../_images/fe251fa62c0615c5d672a329c6f1a878b4d451379344d05c97cc1704e181dfe9.png

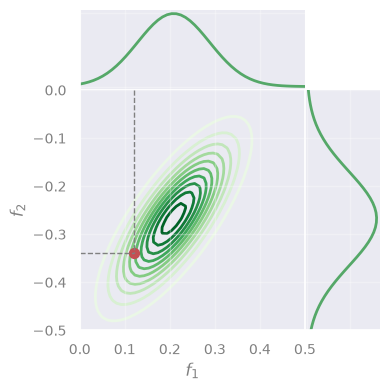

We can pretend that the red dot (f) is sampled at random from this distribution.

NOTE:

A set of variables is multivariate (= jointly) Normal \(\leftrightarrow\) every linear combination of them is normally distributed

\(\rightarrow\) the projections (“marginalizations”) of the multivariate are also Normal (in 1D):

def plot_marginals(fx1x1, fx2x2, rv, mu, f=None, X=None):
    # Extract the 2D marginal mean and covariance
    rv_2D = multivariate_normal(mean=mu[:2], cov=sigma[:2, :2])

    # Compute probability density function on a grid
    fX1X1, fX2X2 = np.meshgrid(fx1x1, fx2x2)
    Z = rv_2D.pdf(np.dstack((fX1X1, fX2X2)))

    # Generate marginal distributions
    marginal_f1 = multivariate_normal(mu[0], sigma[0][0])
    marginal_f2 = multivariate_normal(mu[1], sigma[1][1])
    marg_f1_vals = marginal_f1.pdf(fx1x1)
    marg_f2_vals = marginal_f2.pdf(fx2x2)

    # Create figure;
    if not f:
        n_rows = 2
        n_cols = 2
        figsize = (4, 4)
        gridspec_kw={'height_ratios': [1, 3], 'width_ratios': [3, 1], 'hspace': 0, 'wspace': 0}
    else:
        n_rows = 2
        n_cols = 4
        figsize = (10, 4)
        gridspec_kw={'height_ratios': [1, 3], 'width_ratios': [3, 1, 1, 6], 'hspace': 0, 'wspace': 0}

    fig, axes = plt.subplots(n_rows, n_cols, figsize=figsize, gridspec_kw=gridspec_kw)

    axes[0, 1].axis('off')
    ax_marg_x = axes[0, 0]
    ax_joint  = axes[1, 0]
    ax_marg_y = axes[1, 1]

    if f:
        axes[0, 2].axis('off')
        axes[0, 3].axis('off')
        axes[1, 2].axis('off')
        ax_f = fig.add_subplot(axes[1, 3])

    # Contour plot in central panel
    contour = ax_joint.contour(fX1X1, fX2X2, Z, levels=10, cmap='Greens', zorder=-1)

    # Plot the point of interest
    ax_joint.scatter(fX1, fX2, color='C3', s=50, label="[$f(x1)$, $f(x2)$]", zorder=1)
    ax_joint.plot([fX1, fX1], [np.min(fx1x1), fX2], ls='--', c='grey', lw=1)
    ax_joint.plot([np.min(fx2x2), fX1], [fX2, fX2], ls='--', c='grey', lw=1)

    ax_joint.set_xlim([np.min(fx1x1), np.max(fx1x1)])
    ax_joint.set_ylim([np.min(fx2x2), np.max(fx2x2)])
    ax_joint.set_xlabel('$f_1$')
    ax_joint.set_ylabel('$f_2$')

    # Marginal distributions
    ax_marg_x.plot(fx1x1, marg_f1_vals, color='C2')
    ax_marg_x.set_xlim([np.min(fx1x1), np.max(fx1x1)])
    ax_marg_x.set_xticklabels([])
    ax_marg_x.set_yticklabels([])

    ax_marg_y.plot(marg_f2_vals, fx2x2, color='C2')
    ax_marg_y.set_ylim([np.min(fx2x2), np.max(fx2x2)])
    ax_marg_y.set_xticklabels([])
    ax_marg_y.set_yticklabels([])

    if f:
        xx = np.linspace(0, 5, 50)
        ax_f.plot(xx, f(xx), c='C0', lw=0.5, label="We don't know this ..")

        ax_f.axhline(y=0, lw=0.5, c='grey')
        ax_f.scatter(X, f(X), c='C0', s=65, lw=0.5, label="Data")
        ax_f.set_xlabel('x')
        ax_f.set_ylabel('f(x)')

        # Plot sampled points
        fX_samples = rv.rvs(size=10, random_state=rng)
        ax_joint.scatter(fX_samples[:, 0], fX_samples[:, 1], color='C1', s=30, zorder=1)

        for fX_sample in fX_samples:
            ax_f.scatter(X, fX_sample, c='C4', s=30, lw=0.5, label="Data", alpha=0.5)

    plt.show()

plot_marginals(fx1x1, fx2x2, rv, mu, f=None, X=None)

../_images/9cf42a94a02f5ffc8afb79dec8dab70484c2ae891d3c47343f9fcc2a3681bf6f.png

Gaussian Processes#

A Gaussian Process (GP) is a distribution over functions.

We assign probabilities to entire functions \(\rightarrow\) any function sampled from a GP is a possible “realization” of a stochastic process.

Definition#

A function f(x) is distributed according to a GP if:

for any set of input points \([x_1, \dots, x_n]\), the corresponding set of function values [ f(x\(_1\)), …, f(x\(_n\)) ] follows a multivariate Gaussian (Normal) distribution.

\(\rightarrow\) Yes, just like we visualized above!

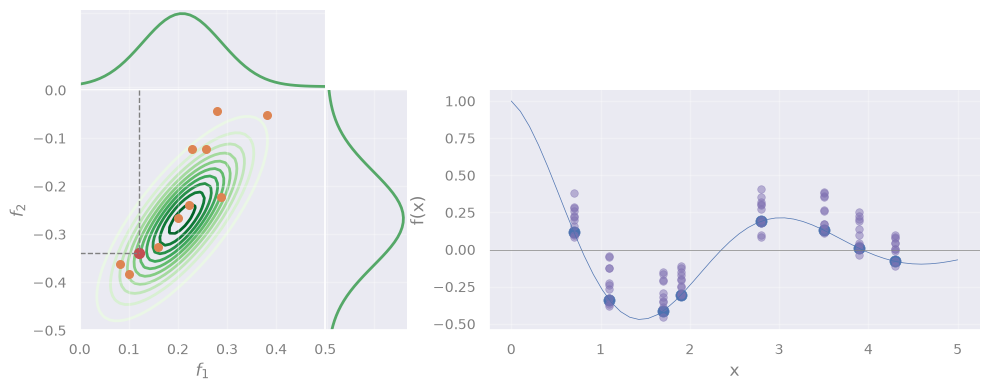

Simliarly, we can sample other points from the same distribution, and plot them:

plot_marginals(fx1x1, fx2x2, rv, mu, f=f, X=X)

../_images/06b2ad0f1618e908d42ac40b4e45991f76536b1fd684778f41dc8606d7845403.png

However, we see that the sampled points do not follow the data.

\(\rightarrow\) Solving GP means to find the correct Gaussian that describes the data.

If we do, we can predict the function at any \(x_*\)!

Intuition#

But … how can we find the whole Gaussian by using only 1 datapoint (the red one)?

Key idea: Function values at different points are not \(i.i.d.\) but instead exhibit covariance.

\(\rightarrow\) When sampling from a GP, we effectively draw an entire set of function values [\(f(x_1), \dots, f(x_n)\)], not just independent values at each point \(x\).

In mathematical terms#

If a function is sampled from a GP, we write:

\[ f \sim \mathcal{GP}(m(x), k(x, x')), \]

where:

\(m(x)\) is the mean function \(-\) gives the expected value of \(f(x)\) at any \(x\)
\(k(x, x')\) is the “covariance” (or “kernel”) \(-\) tells how much the function values at \(x\) and \(x'\) are expected to vary together

Equivalently \(-\) we say that f = \([f(x_1), f(x_2),\dots, f(x_n)]\) is sampled from a multivariate Normal \(\mathcal{N}\):

\[\begin{split} \begin{bmatrix} f(x_1) \\ f(x_2) \\ \vdots \\ f(x_n) \end{bmatrix} \sim \mathcal{N} \left( \begin{bmatrix} m(x_1) \\ m(x_2) \\ \vdots \\ m(x_n) \end{bmatrix}, \begin{bmatrix} k(x_i, x_j) \end{bmatrix}_{i,j} \right). \end{split}\]

with mean \(m(x)\) and covariance \(k(x, x')\).

Or, in a more compact form:

\[ \mathbf{f} \sim \mathcal{N} \left(\mathbf{m}, K\right). \]

This will be our model.

Problem Statement#

Objective: Find the model’s best m and K that allow to approximate the unknown function \(f(x)\).

Our observables are a set of inputs:

\[ X = \{ x_1, x_2, \dots, x_n \} ~~~,~~~ x_i \in \mathbb{R}^{n} \]

and corresponding outputs:

\[ \mathbf{y} = [y_1, y_2, \dots, y_n]^T ~~~,~~~ y_i \in \mathbb{R} \]

Assumption 1: The observed \(y_i\) are not error-less \(-\) instead, they are noisy realizations of \(f(x)\):

\[ y_i = f(x_i) + \epsilon_i ~~~,~~~ \epsilon_i \sim \mathcal{N}(0, \sigma^2_n) \tag{1}\]

“f” \(\rightarrow\) true function values (unknown)
“y” \(\rightarrow\) observed function values

Assumption 2: \(\epsilon_i\) are independent Gaussian noise terms with variance \(\sigma^2_n\)

(Yes, a lot of different Gaussians are involved!)

Solving GP#

Inference of test points

Now, suppose we wish to predict \(f_*\) = \(f(x_*)\) at new test point \(x_*\) \(\rightarrow\) we have to extend f to a new array:

\[\begin{split}\begin{bmatrix} \mathbf{f} \\ f_* \end{bmatrix}\end{split}\]

Since \(-\) by definition \(-\) any finite collection of function values in a GP follows a multivariate Normal:

(1)#\[\begin{equation} \tag{2} \begin{bmatrix} \mathbf{f} \\ f_* \end{bmatrix} \sim \mathcal{N} \left( \begin{bmatrix} \mathbf{m} \\ m_* \end{bmatrix}, \begin{bmatrix} K & k_* \\ k_*^T & k_{**} \end{bmatrix} \right) \end{equation}\]

where:

\(m_*\) is the mean vector evaluated at \(x_*\),
\(K\) is the \(n \times n\) covariance matrix on \(X\),
\(k_* = [k(x_∗,x_1), \dots, k(x_∗,x_n)]^T\) is the covariance vector between the test point and the training points,
\(k_{∗∗} = k(x_∗,x_∗)\) is the variance at the test point.

Of course, we don’t have the array f, but y (our observations) \(\rightarrow\) we actually modify Eq. 2 to include y:

(2)#\[\begin{equation} \tag{3} \begin{bmatrix} \mathbf{y} \\ f_* \end{bmatrix} \sim \dots~? \end{equation}\]

Deriving the posterior

Our goal is to obtain the “posterior distribution”, i.e., \(p(f_* | y)\) \(\rightarrow\) If we have that, we can infer \(f_*\) for any new \(x_*\).

Let’s derive it \(-\) Starting form Eq. 1:

\[ \mathbf{y} \sim \mathbf{f} + \boldsymbol{\epsilon} ~~~,~~~ \boldsymbol{\epsilon} \sim \mathcal{N} \left(0, \sigma^2_n I\right). \]

Since \(\mathbf{f} \sim \mathcal{N} \left(\mathbf{m}, K\right)\) and the noise \(\epsilon_i\) is Gaussian, the observed data \(y\) is also Gaussian:

\[ \mathbf{y} \sim \mathcal{N} \left(\mathbf{m}, K + \sigma^2_n I\right). \tag{4} \]

with variance equalling the sum of variances of f and \(\epsilon_i\).

Plugging this into Eq. 2, we get:

(3)#\[\begin{equation} \tag{5} \begin{bmatrix} \mathbf{y} \\ f_* \end{bmatrix} \sim \mathcal{N} \left( \begin{bmatrix} \mathbf{m} \\ m^* \end{bmatrix}, \begin{bmatrix} K + \sigma_n^2 I & k_* \\ k_*^T & k_{**} \end{bmatrix} \right). \end{equation}\]

For a joint Normal like the one in Eq. 5, there is a rule to derive the conditional probability …

[Detailed derivation] (click here to expand)

\[\begin{split} \begin{bmatrix} a \\ b \end{bmatrix} \sim \mathcal{N}\!\Biggl( \begin{bmatrix} \mu_a \\ \mu_b \end{bmatrix}, \begin{bmatrix} \Sigma_{aa} & \Sigma_{ab} \\ \Sigma_{ba} & \Sigma_{bb} \end{bmatrix} \Biggr) \end{split}\]

\[ b \mid a \;\sim\; \mathcal{N}\!\Bigl(\mu_{b|a},\, \Sigma_{b|a}\Bigr), \]

\[ \text{where}\quad \mu_{b|a} \;=\; \mu_b \;+\; \Sigma_{ba}\,\Sigma_{aa}^{-1}\,\bigl(a-\mu_a\bigr), \quad \Sigma_{b|a} \;=\; \Sigma_{bb} \;-\; \Sigma_{ba}\,\Sigma_{aa}^{-1}\,\Sigma_{ab}. \]

We identify, in our case:

\[\begin{split} \begin{aligned} a &= \mathbf{y}, \quad \mu_a = \mathbf{m}, \quad \Sigma_{aa} = K + \sigma_n^2 I,\\ b &= f_\ast, \quad \mu_b = m_\ast, \quad \Sigma_{ba} = k_\ast, \quad \Sigma_{ab} = k_\ast^T, \quad \Sigma_{bb} = k_{\ast\ast}. \end{aligned} \end{split}\]

… which gives:

\[ f_* \mid \mathbf{y} \;\sim\; \mathcal{N}\!\Bigl(m_* + k_*\,(K + \sigma_n^2\,I)^{-1}(\mathbf{y} - \mathbf{m}),\; k_{**} - k_* \,(K + \sigma_n^2\,I)^{-1} k_*^T\Bigr). \tag{6} \]

\(\rightarrow\) To predict \(f_*\) at point \(x_*\), we will sample from this Multinormal! \(\blacksquare\)

Q: BTW, what does it even mean to “condition” a multivariate Normal? (in-class discussion)

[Spoiler] (click here to expand)

Sorry, you should have attended in class, for this!

Interpretation#

\[ \text{posterior mean} ~~~~~~ m_*^{\text{post}} = m_* + k_*\,\bigl(K + \sigma_n^2\,I\bigr)^{-1}\,\bigl(\mathbf{y} - \mathbf{m}\bigr) \]

is our best estimate for the function values at the test inputs \(x_*\)

\[ \text{posterior covariance} ~~~~~~ \Sigma_*^{\text{post}} = k_{**} - k_*\,\bigl(K + \sigma_n^2\,I\bigr)^{-1}\,k_*^T \]

quantifies our uncertainty about these estimates

The kernel

What was \(k(x, x')\), again?

“tells how much the function values at \(x\) and \(x'\) are expected to vary together” = covariance between \(f(x)\) and \(f(x')\)

In practice, we don’t know \(\rightarrow\) we assume a function, e.g., the Radial Basis Function (RBF) kernel:

\[ k(x, x') = \exp \left( -\frac{||x - x'||^2}{2\ell^2} \right), \]

Completing the derivation#

Yes,

Eq. 6

But,

we forgot a detail

\(\rightarrow\) We need to derive \(\ell\) (or any other kernel hyperparameter) !
\(\rightarrow\) We need to derive \(\sigma_n\) (Eq. 4)!

The hyperparameter \(\sigma_n\) represents the expected noise around the true values of f

How?

We must find the best \(\hat{\sigma_n}\) and \(\hat{\ell}\) maximize the likelihood that our model returns the observed data:

\[ (\hat{\sigma}_n, \hat{\ell}) \;=\; \underset{\sigma_n,\,\ell}{\mathrm{arg\,max}} \; p\bigl(data \mid model): \]

a.k.a. Maximum Likelihood Estimation (MLE)

To be specific, in our case:

\[ (\hat{\sigma}_n, \hat{\ell}) \;=\; \underset{\sigma_n,\,\ell}{\mathrm{arg\,max}} \; p\bigl(\mathbf{y} \mid \mathbf{X}, \sigma_n, \ell\bigr). \tag{7} \]

\(\rightarrow\) We just need \(p\bigl(\mathbf{y} \mid \mathbf{X}, \sigma_n, \ell\bigr)\)

… But, we have it: Eq. 4 !

\[ \mathbf{y} \sim \mathcal{N} \left(\mathbf{m}, K + \sigma^2_n I\right). \]

In other words:

\[ p\bigl(\mathbf{y}\,\big|\mathbf{X},\sigma_n, \ell\bigr) \;= =\; \mathcal{N}\!\bigl(\mathbf{m},\,K_{\boldsymbol{\ell}} + \sigma_n^2 I\bigr). \]

NOTE: The dependence on X is included in K, which is a matrix with entries \(k(x_i, x_j)\).

… which \(-\) in matrix notation \(-\) is:

\[ \mathcal{N}\!\bigl(\mathbf{m},\,K_{\boldsymbol{\ell}} + \sigma_n^2 I\bigr) \;=\; \frac{1}{\sqrt{(2\pi)^n\,\det\!\bigl(K_{\boldsymbol{\ell}} + \sigma_n^2 I\bigr)}} \;\exp\!\Bigl(-\tfrac{1}{2}\, (\mathbf{y}-\mathbf{m})^\mathsf{T}\, \bigl(K_{\boldsymbol{\ell}} + \sigma_n^2 I\bigr)^{-1}\, (\mathbf{y}-\mathbf{m}) \Bigr). \]

Replacing this in Eq. 7:

\[ (\hat{\sigma}_n, \hat{\ell}) \;=\; \underset{\sigma_n,\,\ell}{\mathrm{arg\,max}} \; \frac{1}{\sqrt{(2\pi)^n\,\det\!\bigl(K_{\boldsymbol{\ell}} + \sigma_n^2 I\bigr)}} \;\exp\!\Bigl(-\tfrac{1}{2}\, (\mathbf{y}-\mathbf{m})^\mathsf{T}\, \bigl(K_{\boldsymbol{\ell}} + \sigma_n^2 I\bigr)^{-1}\, (\mathbf{y}-\mathbf{m}) \Bigr). \]

Q: Which technique we can use to find the max? (in-class discussion)

[Spoiler] (click here to expand)

\(\rightarrow\) Any standard optimization algorithm, e.g., Gradient Descent!

I’m gonna sleep, show me the code already#

After all this theory, the sklearn code will look underwhelming, for its simplicity ..

from sklearn.gaussian_process import GaussianProcessRegressor
from sklearn.gaussian_process.kernels import RBF, WhiteKernel
rng = np.random.default_rng(seed=1)

def f_noisy(X):
    return f(X.flatten()) + 0.1 * rng.normal(size=X.shape[0])

# Data
X_train = np.array([0.7, 1.1, 1.7, 1.9, 2.8, 3.5, 3.9, 4.3]).reshape(-1, 1)
'''same `X` as above, but reshaped to 2D for sklearn'''
y_train = f_noisy(X)
'''creating y from the "unknown" f (*wink *wink) plus a little noise'''

# Define a kernel:
#    - RBF is the radial basis function kernel
#    - WhiteKernel handles noise in the data
guess_l = 1.0
guess_sigma_n = 0.3
kernel = RBF(length_scale=guess_l) + WhiteKernel(noise_level=guess_sigma_n)
'''
Here we initialize the kernels with the initial guesses for their hyperparameters.
Internally, sklearn's `GaussianProcessRegressor` will optimize them.

Initial guesses are important! A fit may fail if the guesses are too far off.
'''

# Initialize the Gaussian Process Regressor
gpr = GaussianProcessRegressor(kernel=kernel, random_state=42)

# Fit the model
gpr.fit(X_train, y_train)

GaussianProcessRegressor(kernel=RBF(length_scale=1) + WhiteKernel(noise_level=0.3),
                         random_state=42)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

GaussianProcessRegressor

?Documentation for GaussianProcessRegressoriFitted

Parameters

	kernel kernel: kernel instance, default=None The kernel specifying the covariance function of the GP. If `None` is passed, the kernel `ConstantKernel() * RBF()` is used as default. Note that the kernel hyperparameters are optimized during fitting unless the bounds are marked as `"fixed"` or the argument `optimizer` is set to `None`.	RBF(length_sc...ise_level=0.3)
	random_state random_state: int, RandomState instance or None, default=None Determines random number generation used to initialize the centers. Pass an int for reproducible results across multiple function calls. See :term:`Glossary <random_state>`.	42
	kernel__k1	RBF(length_scale=1)
	kernel__k2	WhiteKernel(noise_level=0.3)
	kernel__k1__length_scale	1.0
	kernel__k1__length_scale_bounds	(1e-05, ...)
	kernel__k2__noise_level	0.3
	kernel__k2__noise_level_bounds	(1e-05, ...)
	alpha alpha: float or ndarray of shape (n_samples,), default=1e-10 Value added to the diagonal of the kernel matrix during fitting. This can prevent a potential numerical issue during fitting, by ensuring that the calculated values form a positive definite matrix. It can also be interpreted as the variance of additional Gaussian measurement noise on the training observations. Note that this is different from using a `WhiteKernel`. If an array is passed, it must have the same number of entries as the data used for fitting and is used as datapoint-dependent noise level. Allowing to specify the noise level directly as a parameter is mainly for convenience and for consistency with :class:`~sklearn.linear_model.Ridge`. For an example illustrating how the alpha parameter controls the noise variance in Gaussian Process Regression, see :ref:`sphx_glr_auto_examples_gaussian_process_plot_gpr_noisy_targets.py`.	1e-10
	optimizer optimizer: "fmin_l_bfgs_b", callable or None, default="fmin_l_bfgs_b" Can either be one of the internally supported optimizers for optimizing the kernel's parameters, specified by a string, or an externally defined optimizer passed as a callable. If a callable is passed, it must have the signature:: def optimizer(obj_func, initial_theta, bounds): # * 'obj_func': the objective function to be minimized, which # takes the hyperparameters theta as a parameter and an # optional flag eval_gradient, which determines if the # gradient is returned additionally to the function value # * 'initial_theta': the initial value for theta, which can be # used by local optimizers # * 'bounds': the bounds on the values of theta .... # Returned are the best found hyperparameters theta and # the corresponding value of the target function. return theta_opt, func_min Per default, the L-BFGS-B algorithm from `scipy.optimize.minimize` is used. If None is passed, the kernel's parameters are kept fixed. Available internal optimizers are: `{'fmin_l_bfgs_b'}`.	'fmin_l_bfgs_b'
	n_restarts_optimizer n_restarts_optimizer: int, default=0 The number of restarts of the optimizer for finding the kernel's parameters which maximize the log-marginal likelihood. The first run of the optimizer is performed from the kernel's initial parameters, the remaining ones (if any) from thetas sampled log-uniform randomly from the space of allowed theta-values. If greater than 0, all bounds must be finite. Note that `n_restarts_optimizer == 0` implies that one run is performed.	0
	normalize_y normalize_y: bool, default=False Whether or not to normalize the target values `y` by removing the mean and scaling to unit-variance. This is recommended for cases where zero-mean, unit-variance priors are used. Note that, in this implementation, the normalisation is reversed before the GP predictions are reported. .. versionchanged:: 0.23	False
	copy_X_train copy_X_train: bool, default=True If True, a persistent copy of the training data is stored in the object. Otherwise, just a reference to the training data is stored, which might cause predictions to change if the data is modified externally.	True
	n_targets n_targets: int, default=None The number of dimensions of the target values. Used to decide the number of outputs when sampling from the prior distributions (i.e. calling :meth:`sample_y` before :meth:`fit`). This parameter is ignored once :meth:`fit` has been called. .. versionadded:: 1.3	None

Fitted attributes

Name	Type	Value
L_ L_: array-like of shape (n_samples, n_samples) Lower-triangular Cholesky decomposition of the kernel in ``X_train_``.	ndarray[float64](8, 8)	[[1. ,0. ,0. ,...,0. ,0. ,0. ], [0.93,0.37,0. ,...,0. ,0. ,0. ], [0.65,0.68,0.34,...,0. ,0. ,0. ], ..., [0.04,0.15,0.38,...,0.42,0. ,0. ], [0.01,0.07,0.22,...,0.64,0.22,0. ], [0. ,0.03,0.11,...,0.72,0.4 ,0.22]]
X_train_ X_train_: array-like of shape (n_samples, n_features) or list of object Feature vectors or other representations of training data (also required for prediction).	ndarray[float64](8, 1)	[[0.7], [1.1], [1.7], ..., [3.5], [3.9], [4.3]]
alpha_ alpha_: array-like of shape (n_samples,) Dual coefficients of training data points in kernel space.	ndarray[float64](8,)	[ 3.38,-5.02,12.54,..., 1.95,-8.18, 4.71]
kernel_ kernel_: kernel instance The kernel used for prediction. The structure of the kernel is the same as the one passed as parameter but with optimized hyperparameters.	Sum	RBF(length_sc...level=0.00492)
log_marginal_likelihood_value_ log_marginal_likelihood_value_: float The log-marginal-likelihood of ``self.kernel_.theta``.	float64	-1.309
n_features_in_ n_features_in_: int Number of features seen during :term:`fit`. .. versionadded:: 0.24	int	1
y_train_ y_train_: array-like of shape (n_samples,) or (n_samples, n_targets) Target values in training data (also required for prediction).	ndarray[float64](8,)	[ 0.15,-0.26,-0.38,..., 0.18,-0.05,-0.02]

Now that the model is fit, we can print the best hyperparamers:

# Print the chosen kernel parameters after fitting
print("Optimized Kernel:", gpr.kernel_)

Optimized Kernel: RBF(length_scale=1.09) + WhiteKernel(noise_level=0.00492)

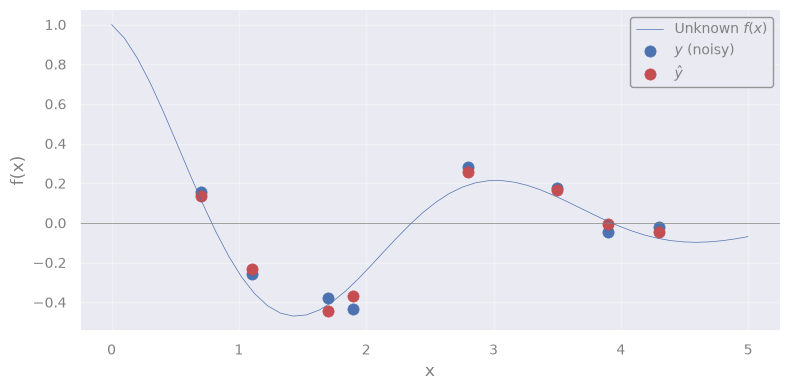

And, of course, predict:

yhat = gpr.predict(X_train)

xx = np.linspace(0, 5, 50)

plt.figure()
plt.axhline(y=0, lw=0.5, c='grey')
plt.plot(xx, f(xx), c='C0', lw=0.5, label="Unknown $f(x)$")
plt.scatter(X_train.flatten(), y_train, c='C0', s=65, lw=0.5, label=r"$y$ (noisy)")
plt.scatter(X_train.flatten(), yhat,    c='C3', s=65, lw=0.5, label=r"$\hat{y}$")
'''NOTE: We need to flatten `X_train` for the plot, since it is 2D'''
plt.xlabel('x')
plt.ylabel('f(x)')

plt.legend()
plt.show()

../_images/2a13ca5e2f378cd5ec453f9918cc05ba97bd3923592b1be3868026a6c114f805.png

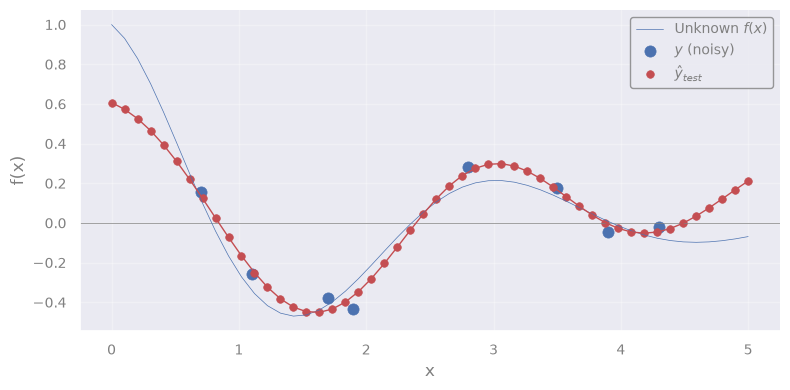

You know what? Let’s predict for a new test point \(x_*\) !

No, better, for 50 test points in the interval 0 < \(x_*\) < 5:

    X_test = np.linspace(0, 5, 50).reshape(-1, 1)

# Predict on new data
X_test = np.linspace(0, 5, 50).reshape(-1, 1)
yhat_test = gpr.predict(X_test)

plt.figure()
plt.axhline(y=0, lw=0.5, c='grey')
plt.plot(xx, f(xx), c='C0', lw=0.5, label="Unknown $f(x)$")
plt.scatter(X_train.flatten(), y_train,         c='C0', s=65, lw=0.5, label="$y$ (noisy)")
plt.scatter(X_test.flatten(),  yhat_test, c='C3', s=30, lw=0.5, label=r"$\hat{y}_{test}$")
plt.plot(X_test.flatten(), yhat_test, c='C3', lw=1)
'''NOTE: We need to flatten `X` and `X_test` for the plot, since they are 2D'''
plt.xlabel('x')
plt.ylabel('f(x)')

plt.legend()
plt.show()

../_images/3b4ef333b3fa09db514ea9314c4ce2debb8d1217e9bae785c114df509f9e85f8.png

Q: What we are seeing here?

It is the mean function \(m(x)\) \(\leftrightarrow\) the most probable function that describes the true \(f(x)\)

Remember the interpretation ?

\[ \text{posterior mean} ~~~~~~ m_*^{\text{post}} = m_* + k_*\,\bigl(K + \sigma_n^2\,I\bigr)^{-1}\,\bigl(\mathbf{y} - \mathbf{m}\bigr) \]

is our best estimate for the function values at the test inputs \(x_*\)

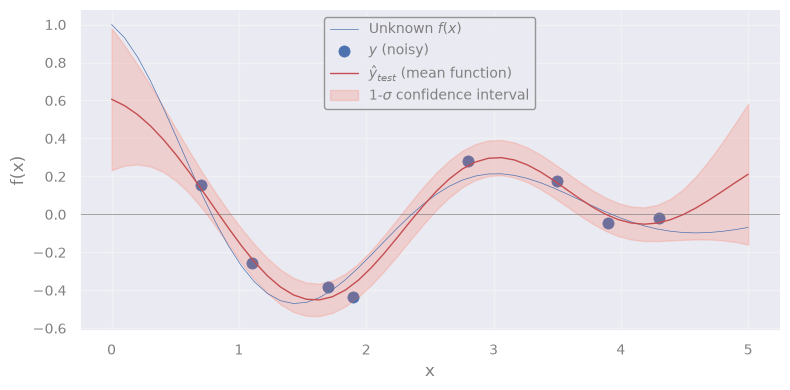

If there is a “mean”, there must be uncertainty around it:

\[ \text{posterior covariance} ~~~~~~ \Sigma_*^{\text{post}} = k_{**} - k_*\,\bigl(K + \sigma_n^2\,I\bigr)^{-1}\,k_*^T \]

quantifies our uncertainty about these estimates

We can extract it like this (full covariance matrix):

    yhat_test, yhat_test_cov = gpr.predict(X_test, return_cov=True)

or like this (only diagonal terms, i.e. standard deviations at each \(x_*\)):

    yhat_test, yhat_test_std = gpr.predict(X_test, return_std=True)

yhat_test, yhat_test_std = gpr.predict(X_test, return_std=True)

plt.figure()
plt.axhline(y=0, lw=0.5, c='grey')
plt.plot(xx, f(xx), c='C0', lw=0.5, label="Unknown $f(x)$")
plt.scatter(X_train.flatten(), y_train, c='C0', s=65, lw=0.5, label="$y$ (noisy)")
plt.plot(X_test.flatten(), yhat_test, c='C3', lw=1, label=r"$\hat{y}_{test}$ (mean function)")
'''NOTE: We need to flatten `X` and `X_test` for the plot, since they are 2D'''
plt.fill_between(
    X_test.ravel(),
    yhat_test - yhat_test_std,
    yhat_test + yhat_test_std,
    alpha=0.2,
    color='tomato',
    label=r'1-$\sigma$ confidence interval'
)
plt.xlabel('x')
plt.ylabel('f(x)')

plt.legend()
plt.show()

The history saving thread hit an unexpected error (OperationalError('attempt to write a readonly database')).History will not be written to the database.

../_images/4de3701da5a6a1a7d3c210c9f7929248bc7b8464db6b2ea05c7077b7fa554f8c.png

Exercise [45 min]

Objective: Fill-in missing pixels in an image.

Dataset: An astronomical image.

from astropy.io import fits
from astropy.visualization import ZScaleInterval
import requests
from io import BytesIO
from skimage.transform import rescale

# Download NGC 1300 galaxy image from HST archive (FITS format)
fits_url = "https://hla.stsci.edu/cgi-bin/fitscut.cgi?red=hst_08597_11_wfpc2_f606w_pc&size=ALL&format=fits&config=ops"
response = requests.get(fits_url)
fits_file = BytesIO(response.content)

# Load the FITS image
data_fits = fits.getdata(fits_file)

# Crop image around galaxy
data_crop = data_fits[350:650, 425:725]

# Downscale the image (for faster computations)
scale_factor = 5
data = rescale(data_crop, 1/scale_factor, anti_aliasing=True, preserve_range=True).astype(data_crop.dtype)

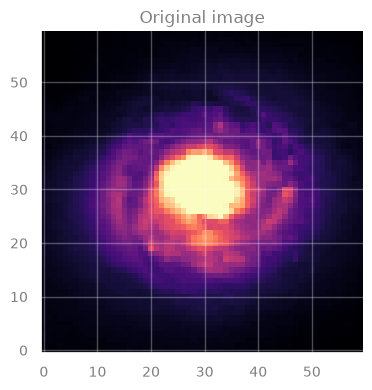

# > Figure
fig, axes = plt.subplots(nrows=1, ncols=1)
axes = [axes]

# Apply ZScale interval for color scaling
interval = ZScaleInterval()
vmin, vmax = interval.get_limits(data)

axes[0].set_title("Original image", fontsize=12)
axes[0].imshow(data, cmap='magma', origin='lower', vmin=vmin, vmax=vmax)

plt.tight_layout()
plt.show()

../_images/2da3119550efa7bfa97bf34c474ff342a1d6f72a00291762fdafc4fb80fa47c8.png

IMPORTANT:

In this image, each pixel has an associated value \(\rightarrow\) indicated by the color.

This is our original data, the image for galaxy NGC 1300.

But, we will “corrupt” it by creating holes in it.

# Generate `n_holes` random circular gaps and set their values to np.nan
rng = np.random.default_rng(seed=2)
masked_data = data.copy()
n_holes = 20

rows, cols = data.shape
for _ in range(n_holes):
    x, y = rng.integers(0, cols), rng.integers(0, rows)
    radius = rng.integers(2, 5) # we add holes of 2 to 5 pixels at random
    y_grid, x_grid = np.ogrid[:rows, :cols]
    mask = (x_grid - x) ** 2 + (y_grid - y) ** 2 < radius ** 2
    masked_data[mask] = np.nan

'''NOTE:
    If we create too many holes (`n_holes`) or too large holes (`radius`),
    we may not have enough data to properly fit the data.

    You may experiment with these quantities and see the effect on the
    final result.
'''

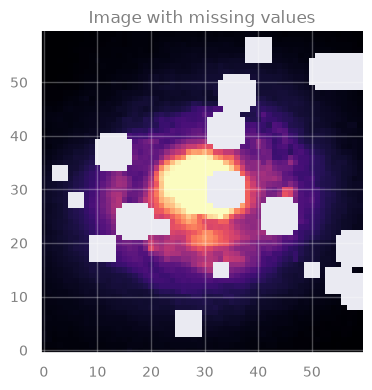

# > Figure
fig, axes = plt.subplots(nrows=1, ncols=1)
axes = [axes]

# Apply ZScale interval for color scaling
interval = ZScaleInterval()
vmin, vmax = interval.get_limits(data)

axes[0].set_title("Image with missing values", fontsize=12)
axes[0].imshow(masked_data, cmap='magma', origin='lower', vmin=vmin, vmax=vmax)

plt.tight_layout()
plt.show()

../_images/29948bc65b6fd69608ef85f659e56deb5dbe10e91fe941406c92f1d3f8e3bd53.png

Task: Use GP to create a model that can predict the missing values.

In particular, you must:

Train the GP model
Predict on missing data

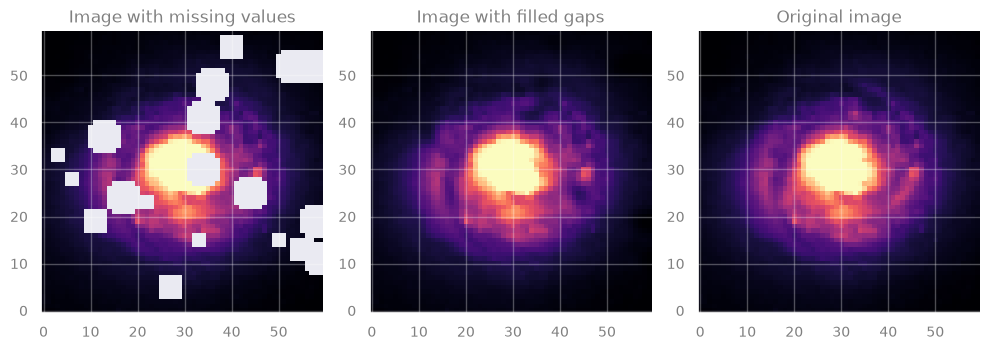

Use your predictions to color the missing spots in the image!

Hint: For step 3, when you need to create an image with your predictions, you literally have to invert the creation of y_test (see next block)

Q: How can we prepare the data for GP? (in-class discussion)

[Spoiler] (click here to expand)

We can place the pixel coordinates in the matrix \(\rightarrow\) X

.. and the corresponding values (color, in the image) in the array \(\rightarrow\) y

from pandas import option_context

# Put the coordinates of valid and invalid pixels in X ...
X_train = np.column_stack(np.where(~np.isnan(masked_data)))  # Coordinates of pixels that are NOT NaN
X_test  = np.column_stack(np.where(np.isnan(masked_data)))   # Coordinates of pixels that are NaN

# Put the values of valid and invalid pixels in y ...
y_train = data[np.where(~np.isnan(masked_data))]
y_test  = data[np.where(np.isnan(masked_data))]

with option_context("display.max_rows", 4):
    print('Train data:')
    display(pd.DataFrame(np.column_stack((X_train, y_train)), columns=['X1', 'X2', 'y']))
    print('Test data:')
    display(pd.DataFrame(np.column_stack((X_test, y_test)), columns=['X1', 'X2', 'y']))

Train data:

	X1	X2	y
0	0.0	0.0	0.066435
1	0.0	1.0	0.068779
...	...	...	...
3063	59.0	58.0	0.049804
3064	59.0	59.0	0.050841

3065 rows × 3 columns

Test data:

	X1	X2	y
0	3.0	25.0	0.146869
1	3.0	26.0	0.146841
...	...	...	...
533	58.0	41.0	0.104825
534	58.0	42.0	0.100024

535 rows × 3 columns

You can now proceed with the GP code ...

# Student: Write your code here. Add blocks as you deem fit.

[Solution below]

%%time

# 1. Train the GP

from sklearn.gaussian_process import GaussianProcessRegressor
from sklearn.gaussian_process.kernels import RBF, WhiteKernel
rng = np.random.default_rng(seed=1)

# Define a kernel:
#    - RBF is the radial basis function kernel
#    - WhiteKernel handles noise in the data
guess_l = 1.0
guess_sigma_n = 0.3
kernel = RBF(length_scale=guess_l) + WhiteKernel(noise_level=guess_sigma_n)

# Initialize the Gaussian Process Regressor
gpr = GaussianProcessRegressor(kernel=kernel, random_state=42)

# Fit the model
gpr.fit(X_train, y_train)

# Print the chosen kernel parameters after fitting
print("Optimized Kernel:", gpr.kernel_)

Optimized Kernel: RBF(length_scale=1.96) + WhiteKernel(noise_level=0.0118)
CPU times: user 3min 18s, sys: 1.99 s, total: 3min 20s
Wall time: 14.5 s

# 2. Predict

yhat_test = gpr.predict(X_test, return_std=False)
print('yhat_test shape: %s' % yhat_test.shape)

yhat_test shape: 535

# 3. Color the plot

# Create a new image
filled_data = masked_data.copy()
# Fill the masked points with predictions
filled_data[np.where(np.isnan(masked_data))] = yhat_test

# > Figure
fig, axes = plt.subplots(figsize=(10, 4), nrows=1, ncols=3)

# Apply ZScale interval for color scaling
interval = ZScaleInterval()
vmin, vmax = interval.get_limits(data)

axes[0].set_title("Image with missing values", fontsize=12)
axes[0].imshow(masked_data, cmap='magma', origin='lower', vmin=vmin, vmax=vmax)
axes[1].set_title("Image with filled gaps", fontsize=12)
axes[1].imshow(filled_data, cmap='magma', origin='lower', vmin=vmin, vmax=vmax)
axes[2].set_title("Original image", fontsize=12)
axes[2].imshow(data, cmap='magma', origin='lower', vmin=vmin, vmax=vmax)

plt.tight_layout()
plt.show()

../_images/6df54c7bff3b09c409e37fad5a90a78382018ac0e34d95a67dde5221cac142f7.png

[End of solution]

Noticed anything? GP is quite sloooow …

Complexity:

Training: \(\mathcal{O}(n^3)\) \(-\) due to inversion of the covariance matrix
Prediction: \(\mathcal{O}(n^2)\) \(-\) for computing the mean and variance

Food-for-thought#

Interpretation

Why GP works “reasonably well” here?

GP uses a kernel \(k(x_i, x_j)\) which represents the correlation between \(f(x_i)\) and \(f(x_j)\)

Q: What is \(f(x_i)\) and \(f(x_j)\), in the case of our image?

[Spoiler] (click here to expand)

The pixel values (colors) !

So the question becomes: are the pixel values at \(x_i\) and \(x_j\) correlated at all?

\(\rightarrow\) Yes! Because the galaxy light profile changes smoothly!

Uncertainties

What is the uncertainty on the prediction?

We filled the image with the mean predicted value.

But GP also provides standard deviation.

\(\rightarrow\) How could we display that ?

###EOF

Gaussian Processes

Contents

Gaussian Processes #

Setup#

Preamble: \(n\) function points are equal to 1 point in \(\mathbb{R}^{n}\)#

Gaussian Processes#

Definition#

Intuition#

In mathematical terms#

Problem Statement#

Solving GP#

Interpretation#

Completing the derivation#

I’m gonna sleep, show me the code already#

Food-for-thought#
